Statements and State

All my life, my heart has yearned for a thing I cannot name. André Breton, Mad Love

The interpreter we have so far feels less like programming a real language and more like punching buttons on a calculator. “Programming” to me means building up a system out of smaller pieces. We can’t do that yet because we have no way to bind a name to some data or function. We can’t compose software without a way to refer to the pieces.

To support bindings, our interpreter needs internal state. When you define a variable at the beginning of the program and use it at the end, the interpreter has to hold on to the value of that variable in the meantime. So in this chapter, we will give our interpreter a brain that can not just process, but remember.

State and statements go hand in hand. Since statements, by definition, don’t evaluate to a value, they need to do something else to be useful. That something is called a side effect. It could mean producing user-visible output or modifying some state in the interpreter that can be detected later. The latter makes them a great fit for defining variables or other named entities.

In this chapter, we’ll do all of that. We’ll define statements that produce output (print) and create state (var). We’ll add expressions to access and assign to variables. Finally, we’ll add blocks and local scope. That’s a lot to stuff into one chapter, but we’ll chew through it all one bite at a time.

8 . 1Statements

We start by extending Lox’s grammar with statements. They aren’t very different from expressions. We start with the two simplest kinds:

An expression statement lets you place an expression where a statement is expected. They exist to evaluate expressions that have side effects. You may not notice them, but you use them all the time in C, Python, Python, and other languages. Any time you see a function or method call followed by a ;, you’re looking at an expression statement.

Pascal is an outlier. It distinguishes between procedures and functions. Functions return values, but procedures cannot. There is a statement form for calling a procedure, but functions can only be called where an expression is expected. There are no expression statements in Pascal.
A print statement evaluates an expression and displays the result to the user. I admit it’s weird to bake printing right into the language instead of making it a library function. Doing so is a concession to the fact that we’re building this interpreter one chapter at a time and want to be able to play with it before it’s all done. To make print a library function, we’d have to wait until we had all of the machinery for defining and calling functions before we could witness any side effects.

I will note with only a modicum of defensiveness that BASIC and Python have dedicated print statements and they are real languages. Granted, Python did remove their print statement in 3.0 . . .

New syntax means new grammar rules. In this chapter, we finally gain the ability to parse an entire Lox script. Since Lox is an imperative, dynamically typed language, the “top level” of a script is simply a list of statements. The new rules are:

program        → statement* EOF ;

statement      → exprStmt
               | printStmt ;

exprStmt       → expression ";" ;
printStmt      → "print" expression ";" ;

The first rule is now program, which is the starting point for the grammar and represents a complete Lox script or REPL entry. A program is a list of statements followed by the special “end of file” token. The mandatory end token ensures the parser consumes the entire input and doesn’t silently ignore erroneous unconsumed tokens at the end of a script.

Right now, statement only has two cases for the two kinds of statements we’ve described. We’ll fill in more later in this chapter and in the following ones. The next step is turning this grammar into something we can store in memory—syntax trees.

8 . 1 . 1Statement syntax trees

There is no place in the grammar where both an expression and a statement are allowed. The operands of, say, + are always expressions, never statements. The body of a while loop is always a statement.

Since the two syntaxes are disjoint, we don’t need a single base class that they all inherit from. Splitting expressions and statements into separate class hierarchies help us find dumb mistakes like passing a statement to a method that expects an expression (granted you configured your IDE to catch such things).

That means a new base class for statements. As our elders did before us, we will use the cryptic name “Stmt”. Just as before, we will define them using dataclasses.

# lox/ast.py after Expr

class Stmt:
    """Abstract Base Class for statements"""

@dataclass
class Expression(Stmt):
    expression: Expr

@dataclass
class Print(Stmt):
    expression: Expr

We will also create a special Stmt node that represents whole programs:

# lox/ast.py after Stmt
@dataclass
class Program(Stmt):
    statements: list[Stmt]

8 . 1 . 2Parsing statements

The parser’s parse() function that parses and returns a single expression was a temporary hack to get the last chapter up and running. Now that our grammar has the correct starting rule, program, we can turn parse() into the real deal.

# lox/parser.py replace the parse() function
from lox.stmt import Stmt

def parse(tokens: list[Token]) -> Stmt:
    parser = Parser(tokens)
    statements = []
    while not parser.is_at_end():
        statements.append(parser.statement())
    return Program(statements)

This parses a series of statements, as many as it can find until it hits the end of the input. This is a pretty direct translation of the program rule into recursive descent style.

A program is a list of statements, and we parse one of those statements using this method:

# lox/parser.py Parser method
def statement(self) -> Stmt:
    match self.peek().type:
        case "PRINT":
            return self.print_statement()
        case _:
            return self.expression_statement()

A little bare bones, but we’ll fill it in with more statement types later. We determine which specific statement rule is matched by looking at the current token. A print token means it’s obviously a print statement.

If the next token doesn’t look like any known kind of statement, we assume it must be an expression statement. That’s the typical final fallthrough case when parsing a statement, since it’s hard to proactively recognize an expression from its first token.

Each statement kind gets its own method. First print:

# lox/parser.py Parser method
def print_statement(self) -> Print:
    self.consume("PRINT", "Expect 'print' keyword.")
    value = self.expression()
    self.consume("SEMICOLON", "Expect ';' after value.")
    return Print(value)

Since we usually call print_statement() from a within statement(), we could simply consume the first token knowning that it would be a print. Parsing the whole statement without such assumptions, makes things easier to isolate for testing and reuse, albeit with at a very small cost in performance. We parse the subsequent expression, consume the terminating semicolon, and emit the syntax tree.

If we didn’t match a print statement, we must have one of these:

# lox/parser.py Parser method
def expression_statement(self) -> Expression:
    expr = self.expression()
    self.consume("SEMICOLON", "Expect ';' after expression.")
    return Expression(expr)

Similar to the previous method, we parse an expression followed by a semicolon. We wrap that Expr in a Stmt of the right type and return it.

8 . 1 . 3Executing statements

We’re running through the previous couple of chapters in microcosm, working our way through the front end. Our parser can now produce statement syntax trees, so the next and final step is to interpret them. As in expressions, we use singledistpatch, but now we have a slightly different interface: statements do not produce returning values, so we need to adapt our eval-like function to account for this.

Rather than patching eval to handle Stmt arguments, we will create an entirely different funtion called exec. This is consistent with Python’s own nomeclature in which the builtin eval handles Python code that represents expressions and exec handles Python code that represent whole programs and statements.

# lox/interpreter.py
@singledispatch
def exec(stmt: Stmt, env: Env) -> None:
    msg = f"exec not implemented for {type(stmt)}"
    raise TypeError(msg)

We have two statement types, and we need an implementation method for each. The easiest is expression statements.

# lox/interpreter.py after exec()
@exec.register
def _(stmt: Expression, env: Env) -> None:
    eval(stmt.expression, env)

We evaluate the inner expression using our existing eval() method and discard the value.

The print statement’s visit method isn’t much different.

# lox/interpreter.py after exec()
@exec.register
def _(stmt: Print, env: Env) -> None:
    value = eval(stmt.expression, env)
    print(stringify(value))

Before discarding the expression’s value, we convert it to a string using the stringify() function we introduced in the last chapter and then dump it to stdout.

We must provide the implementation of exec(Program) to allow our interpreter to handle whole programs.

# lox/interpreter.py after exec()
@exec.register
def _(stmt: Program, env: Env) -> None:
    for child in stmt.statements:
        exec(child, env)

We also need to adjust the Lox.interpret() method to call exec() instead of eval().

# lox/__main__.py Lox method
# Replace the implementation
def interpret(self, statement: Stmt):
    try:
        exec(statement, self.environment)
    except LoxRuntimeError as error:
        self.report_error(error, code=70)

This require a slight change to the imports:

# lox/__main__.py replace lox.interpreter import
from lox.interpreter import eval, exec, stringify

Basically just plumbing the new syntax through. OK, fire up the interpreter and give it a try. At this point, it’s worth sketching out a little Lox program in a text file to run as a script. Something like:

print "one";
print true;
print 2 + 1;

It almost looks like a real program! Note that the REPL, too, now requires you to enter a full statement instead of a simple expression. Don’t forget your semicolons.

8 . 2Global Variables

Now that we have statements, we can start working on state. Before we get into all of the complexity of lexical scoping, we’ll start off with the easiest kind of variables—globals. We need two new constructs.

A variable declaration statement brings a new variable into the world.
```
var beverage = "espresso";
```
This creates a new binding that associates a name (here “beverage”) with a value (here, the string "espresso").
Once that’s done, a variable expression accesses that binding. When the identifier “beverage” is used as an expression, it looks up the value bound to that name and returns it.
```
print beverage; // "espresso".
```

Later, we’ll add assignment and block scope, but that’s enough to get moving.

8 . 2 . 1Variable syntax

As before, we’ll work through the implementation from front to back, starting with the syntax. Variable declarations are statements, but they are different from other statements, and we’re going to split the statement grammar in two to handle them. That’s because the grammar restricts where some kinds of statements are allowed.

The clauses in control flow statements—think the then and else branches of an if statement or the body of a while—are each a single statement. But that statement is not allowed to be one that declares a name. This is OK:

if (monday) print "Ugh, already?";

But this is not:

if (monday) var beverage = "espresso";

We could allow the latter, but it’s confusing. What is the scope of that beverage variable? Does it persist after the if statement? If so, what is its value on days other than Monday? Does the variable exist at all on those days?

Code like this is weird, so C, Python, and friends all disallow it. It’s as if there are two levels of “precedence” for statements. Some places where a statement is allowed—like inside a block or at the top level—allow any kind of statement, including declarations. Others allow only the “higher” precedence statements that don’t declare names.

To accommodate the distinction, we add another rule for kinds of statements that declare names.

program        → declaration* EOF ;

declaration    → varDecl
               | statement ;

statement      → exprStmt
               | printStmt ;

Declaration statements go under the new declaration rule. Right now, it’s only variables, but later it will include functions and classes. Any place where a declaration is allowed also allows non-declaring statements, so the declaration rule falls through to statement. Obviously, you can declare stuff at the top level of a script, so program routes to the new rule.

The rule for declaring a variable looks like:

varDecl        → "var" IDENTIFIER ( "=" expression )? ";" ;

Like most statements, it starts with a leading keyword. In this case, var. Then an identifier token for the name of the variable being declared, followed by an optional initializer expression. Finally, we put a bow on it with the semicolon.

To access a variable, we define a new kind of primary expression.

primary        → "true" | "false" | "nil"
               | NUMBER | STRING
               | "(" expression ")"
               | IDENTIFIER ;

That IDENTIFIER clause matches a single identifier token, which is understood to be the name of the variable being accessed.

These new grammar rules get their corresponding syntax trees. Over in the AST generator, we add a new statement node for a variable declaration.

# lox/ast.py
@dataclass
class Var(Stmt):
    name: Token
    initializer: Expr

It stores the name token so we know what it’s declaring, along with the initializer expression. (If there isn’t an initializer, that field is null.)

Then we add an expression node for accessing a variable.

# lox/ast.py
@dataclass
class Variable(Expr):
    name: Token

It’s simply a wrapper around the token for the variable name. That’s it.

8 . 2 . 2Parsing variables

Before we parse variable statements, we need to shift around some code to make room for the new declaration rule in the grammar. The top level of a program is now a list of declarations, so the entrypoint method to the parser changes.

Hey, do you remember way back in that earlier chapter when we put the infrastructure in place to do error recovery? We are finally ready to hook that up. We replace the entry point to the parser with this:

# lox/parser.py the while loop in the parse()
    ...
    while not parser.is_at_end():
        try:
            statements.append(parser.declaration())
        except LoxSyntaxError:
            parser.synchronize()
    ...

This declaration() method is the method we call repeatedly when parsing a series of statements in a block or a script, so it’s the right place to synchronize when the parser goes into panic mode. We capture any LoxSyntaxError exceptions and initialize the error recovery. The try/except is used to keep parsing even when we hit an error, and if an error occurs, this gets it back to trying to parse the beginning of the next statement or declaration.

After the parsing is done, we need to announce all errors, if any, to the user. We do this by checking the self.errors list and raising an LoxStaticError when appropriate. This requires an import:

# lox/parser.py at the top
from lox.errors import LoxStaticError

And a small verification just before returning:

# lox/parser.py parse() before the return
    ...
    if parser.errors:
        raise LoxStaticError(parser.errors)
    ...

The real parsing happens inside the declaration() method. First, it looks to see if we’re at a variable declaration by looking for the leading var keyword. If not, it falls through to the existing statement() method that parses print and expression statements.

# lox/parser.py Parser method
def declaration(self) -> Stmt:
    match self.peek().type:
        case "VAR":
            return self.var_declaration()
        case _:
            return self.statement()

Remember how statement() tries to parse an expression statement if no other statement matches? And expression() reports a syntax error if it can’t parse an expression at the current token? That chain of calls ensures we report an error if a valid declaration or statement isn’t parsed.

When the parser matches a var token, it branches to:

# lox/parser.py Parser method
def var_declaration(self) -> Var:
    self.consume("VAR", "Expect 'var' keyword.")
    name = self.consume("IDENTIFIER", "Expect variable name.")

    if self.match("EQUAL"):
        initializer = self.expression()
    else:
        initializer = Literal(None)

    self.consume("SEMICOLON",
                 "Expect ';' after variable declaration.")
    return Var(name, initializer)

As always, the recursive descent code follows the grammar rule. It first consumes the var keyword and then the identifier token for the variable name.

Then, if it sees an = token, it knows there is an initializer expression and parses it. Otherwise, it creates an initializer that represents null. Finally, it consumes the required semicolon at the end of the statement. All this gets wrapped in a Var syntax tree node and we’re groovy.

Parsing a variable expression is even easier. In primary(), we look for an identifier token.

# lox/parser.py Parser.primary if chain
    if self.match("IDENTIFIER"):
        return Variable(self.previous())

That gives us a working front end for declaring and using variables. All that’s left is to feed it into the interpreter. Before we get to that, we need to talk about where variables live in memory.

8 . 3Environments

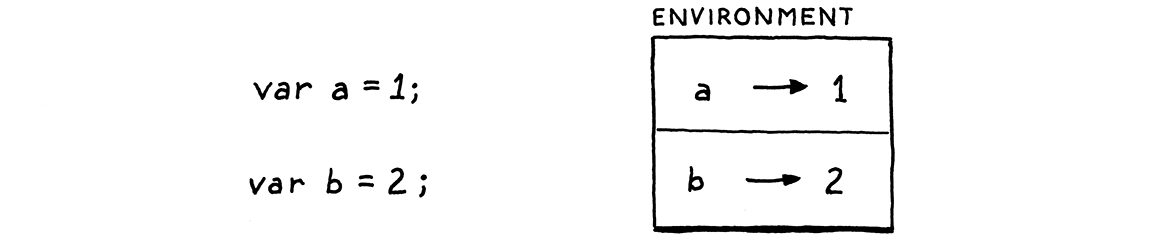

The bindings that associate variables to values need to be stored somewhere. Ever since the Lisp folks invented parentheses, this data structure has been called an environment.

You can think of it like a map where the keys are variable names and the values are the variable’s, uh, values. In fact, that’s how we’ll implement it in Python. We could stuff that map and the code to manage it right into Interpreter, but since it forms a nicely delineated concept, we’ll pull it out into its own class.

Start a new file and add:

# lox/env.py
# Replace the Env declaration
from dataclasses import dataclass, field

@dataclass
class Env[T]:
    values: dict[str, T] = field(default_factory=dict)

The field() function is how you specify non-default behavior for dataclass fields. Here, we use it to specify that the default value for values is a new, empty dictionary, created by calling dict(). If we just wrote

values: dict[str, Value] = {}

Python would share that single dictionary instance across all instances of Env. In fact, newer versions of Python will even stop us from doing that and raise an error during initialization.

There’s a Python dict in there to store the bindings. It uses bare strings for the keys, not tokens. A token represents a unit of code at a specific place in the source text, but when it comes to looking up variables, all identifier tokens with the same name should refer to the same variable (ignoring scope for now). Using the raw string ensures all of those tokens refer to the same map key.

We also need to hook up the Env class to the interpreter. Since we declared Env here as generic, we will create a subclass that specializes to a mapping from strings to Lox values.

# lox/interpreter.py replace Env declaration
from lox import env

class Env(env.Env[Value]):
    pass

There are two operations we need to support. First, a variable definition binds a new name to a value. We want our Env to behave similarly to Python’s dictionaries:

# lox/env.py Env method
def __setitem__(self, name: str, value: Value) -> None:
    self.values[name] = value

Not exactly brain surgery, but we have made one interesting semantic choice. When we add the key to the map, we don’t check to see if it’s already present. That means that this program works:

var a = "before";
print a; // "before".
var a = "after";
print a; // "after".

A variable statement doesn’t just define a new variable, it can also be used to redefine an existing variable. We could choose to make this an error instead. The user may not intend to redefine an existing variable. (If they did mean to, they probably would have used assignment, not var.) Making redefinition an error would help them find that bug.

However, doing so interacts poorly with the REPL. In the middle of a REPL session, it’s nice to not have to mentally track which variables you’ve already defined. We could allow redefinition in the REPL but not in scripts, but then users would have to learn two sets of rules, and code copied and pasted from one form to the other might not work.

So, to keep the two modes consistent, we’ll allow it—at least for global variables. Once a variable exists, we need a way to look it up.

# lox/types.py Env method
def __getitem__(self, name: str) -> Value:
    if name in self.values:
        return self.values[name]
    raise NameError(name)

This is a little more semantically interesting. If the variable is found, it simply returns the value bound to it. But what if it’s not? Again, we have a choice:

Make it a syntax error.
Make it a runtime error.
Allow it and return some default value like nil.

Lox is pretty lax, but the last option is a little too permissive to me. Making it a syntax error—a compile-time error—seems like a smart choice. Using an undefined variable is a bug, and the sooner you detect the mistake, the better.

The problem is that using a variable isn’t the same as referring to it. You can refer to a variable in a chunk of code without immediately evaluating it if that chunk of code is wrapped inside a function. If we make it a static error to mention a variable before it’s been declared, it becomes much harder to define recursive functions.

We could accommodate single recursion—a function that calls itself—by declaring the function’s own name before we examine its body. But that doesn’t help with mutually recursive procedures that call each other. Consider:

fun isOdd(n) {
  if (n == 0) return false;
  return isEven(n - 1);
}

fun isEven(n) {
  if (n == 0) return true;
  return isOdd(n - 1);
}

The isEven() function isn’t defined by the time we are looking at the body of isOdd() where it’s called. If we swap the order of the two functions, then isOdd() isn’t defined when we’re looking at isEven()’s body.

Since making it a static error makes recursive declarations too difficult, we’ll defer the error to runtime. It’s OK to refer to a variable before it’s defined as long as you don’t evaluate the reference. That lets the program for even and odd numbers work, but you’d get a runtime error in:

print a;
var a = "too late!";

As with type errors in the expression evaluation code, we report a runtime error by throwing an exception. The exception contains the variable’s token so we can tell the user where in their code they messed up.

8 . 3 . 1Interpreting global variables

We have two new syntax trees, so that’s two new exec method implementations. The first is for declaration statements.

# lox/interpreter.py after exec()
@exec.register
def _(stmt: Var, env: Env) -> None:
    value = eval(stmt.initializer, env)
    env[stmt.name.lexeme] = value

If the variable has an initializer, we evaluate it. If not, we have another choice to make. We could have made this a syntax error in the parser by requiring an initializer. Most languages don’t, though, so it feels a little harsh to do so in Lox.

We could make it a runtime error. We’d let you define an uninitialized variable, but if you accessed it before assigning to it, a runtime error would occur. It’s not a bad idea, but most dynamically typed languages don’t do that. Instead, we’ll keep it simple and say that Lox sets a variable to nil if it isn’t explicitly initialized.

var a;
print a; // "nil".

Thus, if there isn’t an initializer, we set the value to None, which is the Python representation of Lox’s nil value. Then we tell the environment to bind the variable to that value.

Next, we evaluate a variable expression.

# lox/interpreter.py
@eval.register
def _(expr: Variable, env: Env) -> Value:
    try:
        return env[expr.name.lexeme]
    except NameError as error:
        msg = f"Undefined variable '{expr.name.lexeme}'."
        raise LoxRuntimeError(msg, expr.name)

This simply forwards to the environment which does the heavy lifting to make sure the variable is defined. With that, we’ve got rudimentary variables working. Try this out:

var a = 1;
var b = 2;
print a + b;

We can’t reuse code yet, but we can start to build up programs that reuse data.

8 . 4Assignment

It’s possible to create a language that has variables but does not let you reassign—or mutate—them. Haskell is one example. SML supports only mutable references and arrays—variables cannot be reassigned. Rust steers you away from mutation by requiring a mut modifier to enable assignment.

Mutating a variable is a side effect and, as the name suggests, some language folks think side effects are dirty or inelegant. Code should be pure math that produces values—crystalline, unchanging ones—like an act of divine creation. Not some grubby automaton that beats blobs of data into shape, one imperative grunt at a time.

Lox is not so austere. Lox is an imperative language, and mutation comes with the territory. Adding support for assignment doesn’t require much work. Global variables already support redefinition, so most of the machinery is there now. Mainly, we’re missing an explicit assignment notation.

8 . 4 . 1Assignment syntax

That little = syntax is more complex than it might seem. Like most C-derived languages, assignment is an expression and not a statement. As in C, it is the lowest precedence expression form. That means the rule slots between expression and equality (the next lowest precedence expression).

expression     → assignment ;
assignment     → IDENTIFIER "=" assignment
               | equality ;

This says an assignment is either an identifier followed by an = and an expression for the value, or an equality (and thus any other) expression. Later, assignment will get more complex when we add property setters on objects, like:

instance.field = "value";

The easy part is adding the new syntax tree node.

# lox/ast.py
@dataclass
class Assign(Expr):
    name: Token
    value: Expr

It has a token for the variable being assigned to, and an expression for the new value. After you run the AstGenerator to get the new Expr.Assign class, swap out the body of the parser’s existing expression() method to match the updated rule.

# lox/parser.py replace Parser.expression()
def expression(self) -> Expr:
    return self.assignment()

Here is where it gets tricky. A single token lookahead recursive descent parser can’t see far enough to tell that it’s parsing an assignment until after it has gone through the left-hand side and stumbled onto the =. You might wonder why it even needs to. After all, we don’t know we’re parsing a + expression until after we’ve finished parsing the left operand.

The difference is that the left-hand side of an assignment isn’t an expression that evaluates to a value. It’s a sort of pseudo-expression that evaluates to a “thing” you can assign to. Consider:

var a = "before";
a = "value";

On the second line, we don’t evaluate a (which would return the string “before”). We figure out what variable a refers to so we know where to store the right-hand side expression’s value. The classic terms for these two constructs are l-value and r-value. All of the expressions that we’ve seen so far that produce values are r-values. An l-value “evaluates” to a storage location that you can assign into.

We want the syntax tree to reflect that an l-value isn’t evaluated like a normal expression. That’s why the Expr.Assign node has a Token for the left-hand side, not an Expr. The problem is that the parser doesn’t know it’s parsing an l-value until it hits the =. In a complex l-value, that may occur many tokens later.

makeList().head.next = node;

We have only a single token of lookahead, so what do we do? We use a little trick, and it looks like this:

# lox/parser.py Parser method
def assignment(self) -> Expr:
    expr = self.equality()

    if self.match("EQUAL"):
        equals = self.previous()
        value = self.assignment()

        if isinstance(expr, Variable):
            name = expr.name
            return Assign(name, value)

        self.error(equals, "Invalid assignment target.")
    return expr

Most of the code for parsing an assignment expression looks similar to that of the other binary operators like +. We parse the left-hand side, which can be any expression of higher precedence. If we find an =, we parse the right-hand side and then wrap it all up in an assignment expression tree node.

One slight difference from binary operators is that we don’t loop to build up a sequence of the same operator. Since assignment is right-associative, we instead recursively call assignment() to parse the right-hand side.

The trick is that right before we create the assignment expression node, we look at the left-hand side expression and figure out what kind of assignment target it is. We convert the r-value expression node into an l-value representation.

This conversion works because it turns out that every valid assignment target happens to also be valid syntax as a normal expression. Consider a complex field assignment like:

newPoint(x + 2, 0).y = 3;

The left-hand side of that assignment could also work as a valid expression.

newPoint(x + 2, 0).y;

The first example sets the field, the second gets it.

This means we can parse the left-hand side as if it were an expression and then after the fact produce a syntax tree that turns it into an assignment target. If the left-hand side expression isn’t a valid assignment target, we fail with a syntax error. That ensures we report an error on code like this:

a + b = c;

Right now, the only valid target is a simple variable expression, but we’ll add fields later. The end result of this trick is an assignment expression tree node that knows what it is assigning to and has an expression subtree for the value being assigned. All with only a single token of lookahead and no backtracking.

8 . 4 . 2Assignment semantics

We have a new syntax tree node, so our interpreter gets a new method implementation.

# lox/interpreter.py
@eval.register
def _(expr: Assign, env: Env) -> Value:
    value = eval(expr.value, env)
    try:
        env.assign(expr.name.lexeme, value)
    except NameError as error:
        msg = f"Undefined variable '{error}'."
        raise LoxRuntimeError(msg, expr.name)
    return value

For obvious reasons, it’s similar to variable declaration. It evaluates the right-hand side to get the value, then stores it in the named variable. Instead of using __setitem__() on Env, it calls this new method:

# lox/env.py Env method
def assign(self, name: str, value: Value) -> None:
    if name in self.values:
        self.values[name] = value
    else:
        raise NameError(name)

The key difference between assignment and definition is that assignment is not allowed to create a new variable. In terms of our implementation, that means it’s a runtime error if the key doesn’t already exist in the environment’s variable map.

The last thing the visit() method does is return the assigned value. That’s because assignment is an expression that can be nested inside other expressions, like so:

var a = 1;
print a = 2; // "2".

Our interpreter can now create, read, and modify variables. It’s about as sophisticated as early BASICs. Global variables are simple, but writing a large program when any two chunks of code can accidentally step on each other’s state is no fun. We want local variables, which means it’s time for scope.

8 . 5Scope

A scope defines a region where a name maps to a certain entity. Multiple scopes enable the same name to refer to different things in different contexts. In my house, “Bob” usually refers to me. But maybe in your town you know a different Bob. Same name, but different dudes based on where you say it.

Lexical scope (or the less commonly heard static scope) is a specific style of scoping where the text of the program itself shows where a scope begins and ends. In Lox, as in most modern languages, variables are lexically scoped. When you see an expression that uses some variable, you can figure out which variable declaration it refers to just by statically reading the code.

For example:

{
  var a = "first";
  print a; // "first".
}

{
  var a = "second";
  print a; // "second".
}

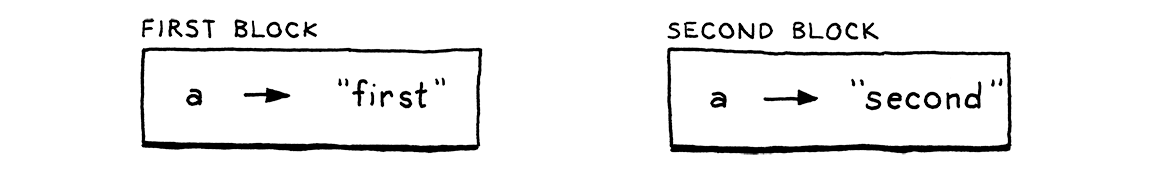

Here, we have two blocks with a variable a declared in each of them. You and I can tell just from looking at the code that the use of a in the first print statement refers to the first a, and the second one refers to the second.

This is in contrast to dynamic scope where you don’t know what a name refers to until you execute the code. Lox doesn’t have dynamically scoped variables, but methods and fields on objects are dynamically scoped.

class Saxophone {
  play() {
    print "Careless Whisper";
  }
}

class GolfClub {
  play() {
    print "Fore!";
  }
}

fun playIt(thing) {
  thing.play();
}

When playIt() calls thing.play(), we don’t know if we’re about to hear “Careless Whisper” or “Fore!” It depends on whether you pass a Saxophone or a GolfClub to the function, and we don’t know that until runtime.

Scope and environments are close cousins. The former is the theoretical concept, and the latter is the machinery that implements it. As our interpreter works its way through code, syntax tree nodes that affect scope will change the environment. In a C-ish syntax like Lox’s, scope is controlled by curly-braced blocks. (That’s why we call it block scope.)

{
  var a = "in block";
}
print a; // Error! No more "a".

The beginning of a block introduces a new local scope, and that scope ends when execution passes the closing }. Any variables declared inside the block disappear.

8 . 5 . 1Nesting and shadowing

A first cut at implementing block scope might work like this:

As we visit each statement inside the block, keep track of any variables declared.
After the last statement is executed, tell the environment to delete all of those variables.

That would work for the previous example. But remember, one motivation for local scope is encapsulation—a block of code in one corner of the program shouldn’t interfere with some other block. Check this out:

// How loud?
var volume = 11;

// Silence.
volume = 0;

// Calculate size of 3x4x5 cuboid.
{
  var volume = 3 * 4 * 5;
  print volume;
}

Look at the block where we calculate the volume of the cuboid using a local declaration of volume. After the block exits, the interpreter will delete the global volume variable. That ain’t right. When we exit the block, we should remove any variables declared inside the block, but if there is a variable with the same name declared outside of the block, that’s a different variable. It shouldn’t get touched.

When a local variable has the same name as a variable in an enclosing scope, it shadows the outer one. Code inside the block can’t see it any more—it is hidden in the “shadow” cast by the inner one—but it’s still there.

When we enter a new block scope, we need to preserve variables defined in outer scopes so they are still around when we exit the inner block. We do that by defining a fresh environment for each block containing only the variables defined in that scope. When we exit the block, we discard its environment and restore the previous one.

We also need to handle enclosing variables that are not shadowed.

var global = "outside";
{
  var local = "inside";
  print global + local;
}

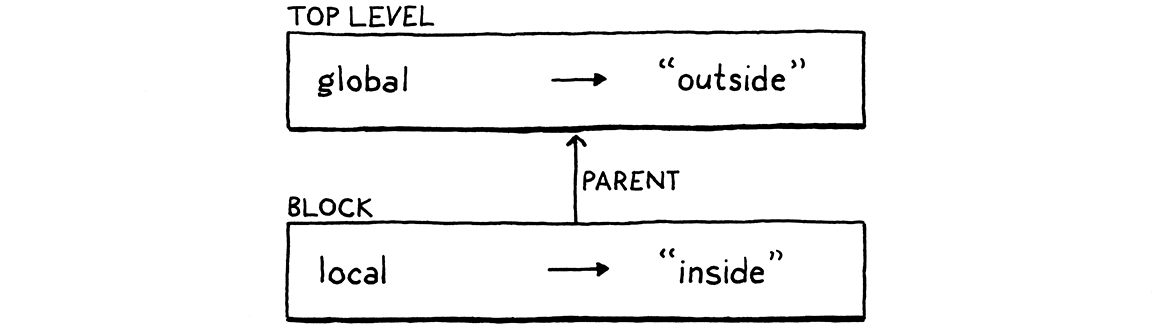

Here, global lives in the outer global environment and local is defined inside the block’s environment. In that print statement, both of those variables are in scope. In order to find them, the interpreter must search not only the current innermost environment, but also any enclosing ones.

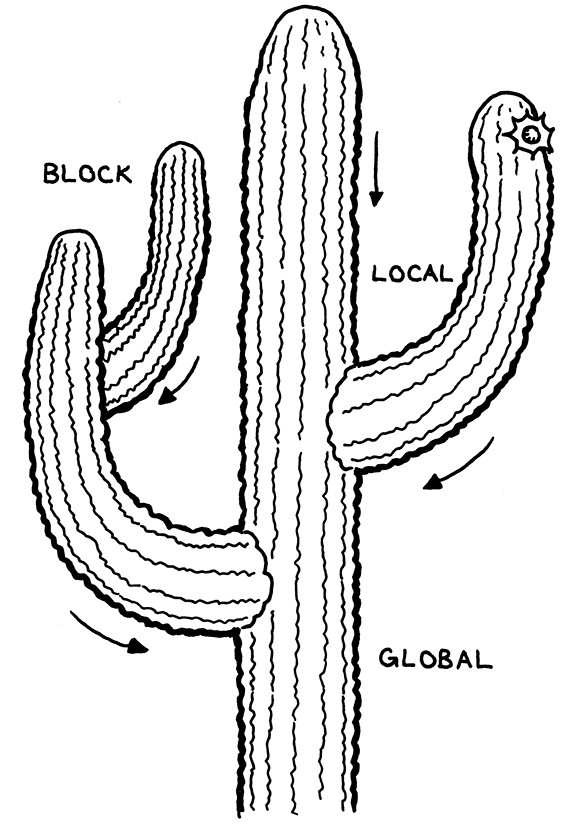

We implement this by chaining the environments together. Each environment has a reference to the environment of the immediately enclosing scope. When we look up a variable, we walk that chain from innermost out until we find the variable. Starting at the inner scope is how we make local variables shadow outer ones.

Before we add block syntax to the grammar, we’ll beef up our Environment class with support for this nesting. First, we give each environment a reference to its enclosing one.

# lox/types.py replace Env fields
    ...
    values: dict[str, Value] = field(default_factory=dict)
    enclosing: Env | None = None
    ...

Depending on your Python version, you may need to add a future import:

from __future__ import annotations

# lox/types.py Env method
def push(self) -> Env:
    return Env(enclosing=self)

We don’t have to touch the define() method—a new variable is always declared in the current innermost scope. But variable lookup and assignment work with existing variables and they need to walk the chain to find them. First, lookup:

# lox/types.py Env.__getitem__
# Before raising
    ...
    if self.enclosing is not None:
        return self.enclosing[name]
    ...

If the variable isn’t found in this environment, we simply try the enclosing one. That in turn does the same thing recursively, so this will ultimately walk the entire chain. If we reach an environment with no enclosing one and still don’t find the variable, then we give up and report an error as before.

Assignment works the same way.

# lox/env.py Env.assign()
# Before else
    ...
    elif self.enclosing is not None:
        self.enclosing.assign(name, value)
    ...

Again, if the variable isn’t in this environment, it checks the outer one, recursively.

8 . 5 . 2Block syntax and semantics

Now that Environments nest, we’re ready to add blocks to the language. Behold the grammar:

statement      → exprStmt
               | printStmt
               | block ;

block          → "{" declaration* "}" ;

A block is a (possibly empty) series of statements or declarations surrounded by curly braces. A block is itself a statement and can appear anywhere a statement is allowed. The syntax tree node looks like this:

# lox/ast.py
@dataclass
class Block(Stmt):
    statements: list[Stmt]

It contains the list of statements that are inside the block. Parsing is straightforward. Like other statements, we detect the beginning of a block by its leading token—in this case the {. In the statement() method, we add:

# lox/parser.py Parser.statement() match/case
    ...
    case "LEFT_BRACE":
        return self.block_statement()
    ...

All the real work happens here:

# lox/parser.py Parser method
def block_statement(self) -> Block:
    self.consume("LEFT_BRACE", "Expect '{' to open block.")
    statements: list[Stmt] = []
    while not self.check("RIGHT_BRACE") and not self.is_at_end():
        statements.append(self.declaration())
    self.consume("RIGHT_BRACE", "Expect '}' after block.")
    return Block(statements)

We create an empty list and then parse statements and add them to the list until we reach the end of the block, marked by the closing }. Note that the loop also has an explicit check for is_at_end(). We have to be careful to avoid infinite loops, even when parsing invalid code. If the user forgets a closing }, the parser needs to not get stuck.

That’s it for syntax. For semantics, we add another visit method to exec.

# lox/interpreter.py after exec()
@exec.register
def _(stmt: Block, env: Env) -> None:
    inner_env = env.push()
    for statement in stmt.statements:
        exec(statement, inner_env)

This new method executes a list of statements in the context of a given env. Up until now, the env argument always pointed to the same environment—the global one. Now, that field represents the current environment. That’s the environment that corresponds to the innermost scope containing the code to be executed.

To execute code within a given scope, this method encloses the env passed to all inner statements and then discards the enclosing environment at the end of execution.

Surprisingly, that’s all we need to do in order to fully support local variables, nesting, and shadowing. Go ahead and try this out:

var a = "global a";
var b = "global b";
var c = "global c";
{
  var a = "outer a";
  var b = "outer b";
  {
    var a = "inner a";
    print a;
    print b;
    print c;
  }
  print a;
  print b;
  print c;
}
print a;
print b;
print c;

Our little interpreter can remember things now. We are inching closer to something resembling a full-featured programming language.

Challenges

The REPL no longer supports entering a single expression and automatically printing its result value. That’s a drag. Add support to the REPL to let users type in both statements and expressions. If they enter a statement, execute it. If they enter an expression, evaluate it and display the result value.
Maybe you want Lox to be a little more explicit about variable initialization. Instead of implicitly initializing variables to nil, make it a runtime error to access a variable that has not been initialized or assigned to, as in:
```
// No initializers.
var a;
var b;

a = "assigned";
print a; // OK, was assigned first.

print b; // Error!
```
What does the following program do?
```
var a = 1;
{
  var a = a + 2;
  print a;
}
```
What did you expect it to do? Is it what you think it should do? What does analogous code in other languages you are familiar with do? What do you think users will expect this to do?

Design Note: Implicit Variable Declaration

Lox has distinct syntax for declaring a new variable and assigning to an existing one. Some languages collapse those to only assignment syntax. Assigning to a non-existent variable automatically brings it into being. This is called implicit variable declaration and exists in Python, Ruby, and CoffeeScript, among others. JavaScript has an explicit syntax to declare variables, but can also create new variables on assignment. Visual Basic has an option to enable or disable implicit variables.

When the same syntax can assign or create a variable, each language must decide what happens when it isn’t clear about which behavior the user intends. In particular, each language must choose how implicit declaration interacts with shadowing, and which scope an implicitly declared variable goes into.

In Python, assignment always creates a variable in the current function’s scope, even if there is a variable with the same name declared outside of the function.
Ruby avoids some ambiguity by having different naming rules for local and global variables. However, blocks in Ruby (which are more like closures than like “blocks” in C) have their own scope, so it still has the problem. Assignment in Ruby assigns to an existing variable outside of the current block if there is one with the same name. Otherwise, it creates a new variable in the current block’s scope.
CoffeeScript, which takes after Ruby in many ways, is similar. It explicitly disallows shadowing by saying that assignment always assigns to a variable in an outer scope if there is one, all the way up to the outermost global scope. Otherwise, it creates the variable in the current function scope.
In JavaScript, assignment modifies an existing variable in any enclosing scope, if found. If not, it implicitly creates a new variable in the global scope.

The main advantage to implicit declaration is simplicity. There’s less syntax and no “declaration” concept to learn. Users can just start assigning stuff and the language figures it out.

Older, statically typed languages like C benefit from explicit declaration because they give the user a place to tell the compiler what type each variable has and how much storage to allocate for it. In a dynamically typed, garbage-collected language, that isn’t really necessary, so you can get away with making declarations implicit. It feels a little more “scripty”, more “you know what I mean”.

But is that a good idea? Implicit declaration has some problems.

A user may intend to assign to an existing variable, but may have misspelled it. The interpreter doesn’t know that, so it goes ahead and silently creates some new variable and the variable the user wanted to assign to still has its old value. This is particularly heinous in JavaScript where a typo will create a global variable, which may in turn interfere with other code.
JS, Ruby, and CoffeeScript use the presence of an existing variable with the same name—even in an outer scope—to determine whether or not an assignment creates a new variable or assigns to an existing one. That means adding a new variable in a surrounding scope can change the meaning of existing code. What was once a local variable may silently turn into an assignment to that new outer variable.
In Python, you may want to assign to some variable outside of the current function instead of creating a new variable in the current one, but you can’t.

Over time, the languages I know with implicit variable declaration ended up adding more features and complexity to deal with these problems.

Implicit declaration of global variables in JavaScript is universally considered a mistake today. “Strict mode” disables it and makes it a compile error.
Python added a global statement to let you explicitly assign to a global variable from within a function. Later, as functional programming and nested functions became more popular, they added a similar nonlocal statement to assign to variables in enclosing functions.
Ruby extended its block syntax to allow declaring certain variables to be explicitly local to the block even if the same name exists in an outer scope.

Given those, I think the simplicity argument is mostly lost. There is an argument that implicit declaration is the right default but I personally find that less compelling.

My opinion is that implicit declaration made sense in years past when most scripting languages were heavily imperative and code was pretty flat. As programmers have gotten more comfortable with deep nesting, functional programming, and closures, it’s become much more common to want access to variables in outer scopes. That makes it more likely that users will run into the tricky cases where it’s not clear whether they intend their assignment to create a new variable or reuse a surrounding one.

So I prefer explicitly declaring variables, which is why Lox requires it.
