Representing Code

To dwellers in a wood, almost every species of tree has its voice as well as its feature. Thomas Hardy, Under the Greenwood Tree

In the last chapter, we took the raw source code as a string and transformed it into a slightly higher-level representation: a series of tokens. The parser we’ll write in the next chapter takes those tokens and transforms them yet again, into an even richer, more complex representation.

Before we can produce that representation, we need to define it. That’s the subject of this chapter. Along the way, we’ll cover some theory around formal grammars, feel the difference between functional and object-oriented programming, go over a couple of design patterns, and do some metaprogramming.

Before we do all that, let’s focus on the main goal—a representation for code. It should be simple for the parser to produce and easy for the interpreter to consume. If you haven’t written a parser or interpreter yet, those requirements aren’t exactly illuminating. Maybe your intuition can help. What is your brain doing when you play the part of a human interpreter? How do you mentally evaluate an arithmetic expression like this:

1 + 2 * 3 - 4

Because you understand the order of operations—the old “Please Excuse My Dear Aunt Sally” stuff—you know that the multiplication is evaluated before the addition or subtraction. One way to visualize that precedence is using a tree. Leaf nodes are numbers, and interior nodes are operators with branches for each of their operands.

In order to evaluate an arithmetic node, you need to know the numeric values of its subtrees, so you have to evaluate those first. That means working your way from the leaves up to the root—a post-order traversal:

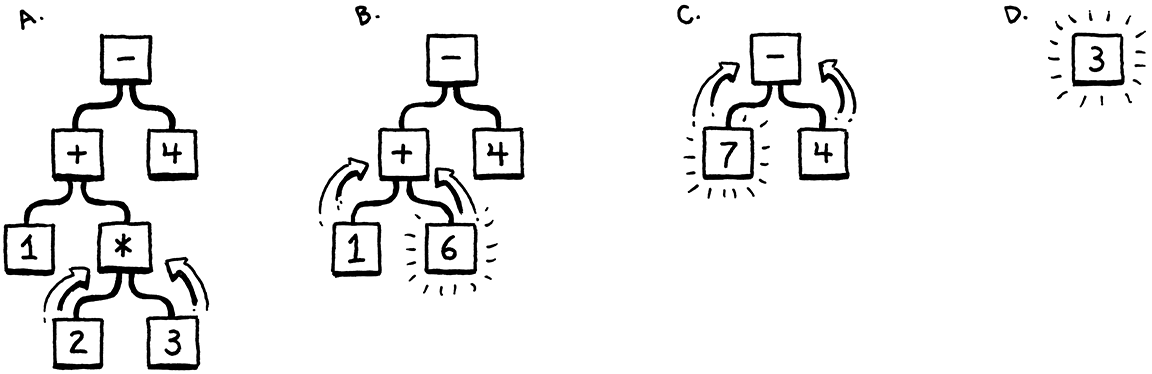

If I gave you an arithmetic expression, you could draw one of these trees pretty easily. Given a tree, you can evaluate it without breaking a sweat. So it intuitively seems like a workable representation of our code is a tree that matches the grammatical structure—the operator nesting—of the language.

We need to get more precise about what that grammar is then. Like lexical grammars in the last chapter, there is a long ton of theory around syntactic grammars. We’re going into that theory a little more than we did when scanning because it turns out to be a useful tool throughout much of the interpreter. We start by moving one level up the Chomsky hierarchy . . .

5 . 1Context-Free Grammars

In the last chapter, the formalism we used for defining the lexical grammar—the rules for how characters get grouped into tokens—was called a regular language. That was fine for our scanner, which emits a flat sequence of tokens. But regular languages aren’t powerful enough to handle expressions which can nest arbitrarily deeply.

We need a bigger hammer, and that hammer is a context-free grammar (CFG). It’s the next heaviest tool in the toolbox of [formal grammars][]. A formal grammar takes a set of atomic pieces it calls its “alphabet”. Then it defines a (usually infinite) set of “strings” that are “in” the grammar. Each string is a sequence of “letters” in the alphabet.

I’m using all those quotes because the terms get a little confusing as you move from lexical to syntactic grammars. In our scanner’s grammar, the alphabet consists of individual characters and the strings are the valid lexemes—roughly “words”. In the syntactic grammar we’re talking about now, we’re at a different level of granularity. Now each “letter” in the alphabet is an entire token and a “string” is a sequence of tokens—an entire expression.

Oof. Maybe a table will help:

A formal grammar’s job is to specify which strings are valid and which aren’t. If we were defining a grammar for English sentences, “eggs are tasty for breakfast” would be in the grammar, but “tasty breakfast for are eggs” would probably not.

5 . 1 . 1Rules for grammars

How do we write down a grammar that contains an infinite number of valid strings? We obviously can’t list them all out. Instead, we create a finite set of rules. You can think of them as a game that you can “play” in one of two directions.

If you start with the rules, you can use them to generate strings that are in the grammar. Strings created this way are called derivations because each is derived from the rules of the grammar. In each step of the game, you pick a rule and follow what it tells you to do. Most of the lingo around formal grammars comes from playing them in this direction. Rules are called productions because they produce strings in the grammar.

Each production in a context-free grammar has a head—its name—and a body, which describes what it generates. In its pure form, the body is simply a list of symbols. Symbols come in two delectable flavors:

• A terminal is a letter from the grammar’s alphabet. You can think of it like a literal value. In the syntactic grammar we’re defining, the terminals are individual lexemes—tokens coming from the scanner like if or 1234.

  These are called “terminals”, in the sense of an “end point” because they don’t lead to any further “moves” in the game. You simply produce that one symbol.

• A nonterminal is a named reference to another rule in the grammar. It means “play that rule and insert whatever it produces here”. In this way, the grammar composes.

There is one last refinement: you may have multiple rules with the same name. When you reach a nonterminal with that name, you are allowed to pick any of the rules for it, whichever floats your boat.

To make this concrete, we need a way to write down these production rules. People have been trying to crystallize grammar all the way back to Pāṇini’s Ashtadhyayi, which codified Sanskrit grammar a mere couple thousand years ago. Not much progress happened until John Backus and company needed a notation for specifying ALGOL 58 and came up with Backus-Naur form (BNF). Since then, nearly everyone uses some flavor of BNF, tweaked to their own tastes.

I tried to come up with something clean. Each rule is a name, followed by an arrow (→), followed by a sequence of symbols, and finally ending with a semicolon (;). Terminals are quoted strings, and nonterminals are lowercase words.

Using that, here’s a grammar for breakfast menus:

breakfast  → protein "with" breakfast "on the side" ;
breakfast  → protein ;
breakfast  → bread ;

protein    → crispiness "crispy" "bacon" ;
protein    → "sausage" ;
protein    → cooked "eggs" ;

crispiness → "really" ;
crispiness → "really" crispiness ;

cooked     → "scrambled" ;
cooked     → "poached" ;
cooked     → "fried" ;

bread      → "toast" ;
bread      → "biscuits" ;
bread      → "English muffin" ;

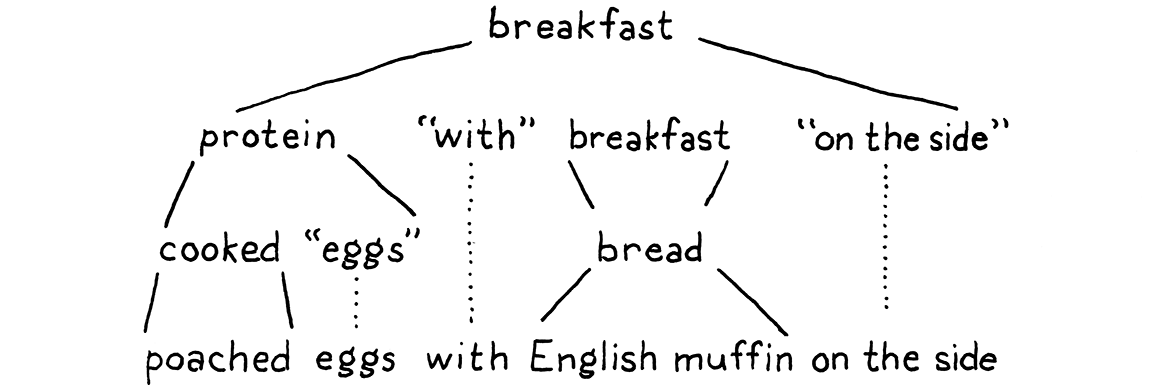

We can use this grammar to generate random breakfasts. Let’s play a round and see how it works. By age-old convention, the game starts with the first rule in the grammar, here breakfast. There are three productions for that, and we randomly pick the first one. Our resulting string looks like:

protein "with" breakfast "on the side"

We need to expand that first nonterminal, protein, so we pick a production for that. Let’s pick:

protein → cooked "eggs" ;

Next, we need a production for cooked, and so we pick "poached". That’s a terminal, so we add that. Now our string looks like:

"poached" "eggs" "with" breakfast "on the side"

The next non-terminal is breakfast again. The first breakfast production we chose recursively refers back to the breakfast rule. Recursion in the grammar is a good sign that the language being defined is context-free instead of regular. In particular, recursion where the recursive nonterminal has productions on both sides implies that the language is not regular.

We could keep picking the first production for breakfast over and over again yielding all manner of breakfasts like “bacon with sausage with scrambled eggs with bacon . . . ” We won’t though. This time we’ll pick bread. There are three rules for that, each of which contains only a terminal. We’ll pick “English muffin”.

With that, every nonterminal in the string has been expanded until it finally contains only terminals and we’re left with:

Throw in some ham and Hollandaise, and you’ve got eggs Benedict.

Any time we hit a rule that had multiple productions, we just picked one arbitrarily. It is this flexibility that allows a short number of grammar rules to encode a combinatorially larger set of strings. The fact that a rule can refer to itself—directly or indirectly—kicks it up even more, letting us pack an infinite number of strings into a finite grammar.

5 . 1 . 2Enhancing our notation

Stuffing an infinite set of strings in a handful of rules is pretty fantastic, but let’s take it further. Our notation works, but it’s tedious. So, like any good language designer, we’ll sprinkle a little syntactic sugar on top—some extra convenience notation. In addition to terminals and nonterminals, we’ll allow a few other kinds of expressions in the body of a rule:

• Instead of repeating the rule name each time we want to add another production for it, we’ll allow a series of productions separated by a pipe (|).

  bread → "toast" | "biscuits" | "English muffin" ;


• Further, we’ll allow parentheses for grouping and then allow | within that to select one from a series of options within the middle of a production.

  protein → ( "scrambled" | "poached" | "fried" ) "eggs" ;


• Using recursion to support repeated sequences of symbols has a certain appealing purity, but it’s kind of a chore to make a separate named sub-rule each time we want to loop. So, we also use a postfix * to allow the previous symbol or group to be repeated zero or more times.

  crispiness → "really" "really"* ;


• A postfix + is similar, but requires the preceding production to appear at least once.

  crispiness → "really"+ ;


• A postfix ? is for an optional production. The thing before it can appear zero or one time, but not more.

  breakfast → protein ( "with" breakfast "on the side" )? ;


With all of those syntactic niceties, our breakfast grammar condenses down to:

breakfast → protein ( "with" breakfast "on the side" )?
          | bread ;

protein   → "really"+ "crispy" "bacon"
          | "sausage"
          | ( "scrambled" | "poached" | "fried" ) "eggs" ;

bread     → "toast" | "biscuits" | "English muffin" ;

Not too bad, I hope. If you’re used to grep or using regular expressions in your text editor, most of the punctuation should be familiar. The main difference is that symbols here represent entire tokens, not single characters.

We’ll use this notation throughout the rest of the book to precisely describe Lox’s grammar. As you work on programming languages, you’ll find that context-free grammars (using this or EBNF or some other notation) help you crystallize your informal syntax design ideas. They are also a handy medium for communicating with other language hackers about syntax.

The rules and productions we define for Lox are also our guide to the tree data structure we’re going to implement to represent code in memory. Before we can do that, we need an actual grammar for Lox, or at least enough of one for us to get started.

5 . 1 . 3A Grammar for Lox expressions

In the previous chapter, we did Lox’s entire lexical grammar in one fell swoop. Every keyword and bit of punctuation is there. The syntactic grammar is larger, and it would be a real bore to grind through the entire thing before we actually get our interpreter up and running.

Instead, we’ll crank through a subset of the language in the next couple of chapters. Once we have that mini-language represented, parsed, and interpreted, then later chapters will progressively add new features to it, including the new syntax. For now, we are going to worry about only a handful of expressions:

• Literals. Numbers, strings, Booleans, and nil.

• Unary expressions. A prefix ! to perform a logical not, and - to negate a number.

• Binary expressions. The infix arithmetic (+, -, *, /) and logic operators (==, !=, <, <=, >, >=) we know and love.

• Parentheses. A pair of ( and ) wrapped around an expression.

That gives us enough syntax for expressions like:

1 - (2 * 3) < 4 == false

Using our handy dandy new notation, here’s a grammar for those:

expression     → literal
               | unary
               | binary
               | grouping ;

literal        → NUMBER | STRING | "true" | "false" | "nil" ;
grouping       → "(" expression ")" ;
unary          → ( "-" | "!" ) expression ;
binary         → expression operator expression ;
operator       → "==" | "!=" | "<" | "<=" | ">" | ">="
               | "+"  | "-"  | "*" | "/" ;

There’s one bit of extra metasyntax here. In addition to quoted strings for terminals that match exact lexemes, we CAPITALIZE terminals that are a single lexeme whose text representation may vary. NUMBER is any number literal, and STRING is any string literal. Later, we’ll do the same for IDENTIFIER.

This grammar is actually ambiguous, which we’ll see when we get to parsing it. But it’s good enough for now.

5 . 2Implementing Syntax Trees

Finally, we get to write some code. That little expression grammar is our skeleton. Since the grammar is recursive—note how grouping, unary, and binary all refer back to expression—our data structure will form a tree. Since this structure represents the syntax of our language, it’s called a syntax tree.

Our scanner used a single Token class to represent all kinds of lexemes. To distinguish the different kinds—think the number 123 versus the string "123"—we included a simple TokenType enum. Syntax trees are not so homogeneous. Unary expressions have a single operand, binary expressions have two, and literals have none.

We could mush that all together into a single Expression class with an arbitrary list of children. Some compilers do. But I like getting the most out of Python’s type system. So we’ll define a base class for expressions. Then, for each kind of expression—each production under expression—we create a subclass that has fields for the nonterminals specific to that rule. This way, we get a compile error if we, say, try to access the second operand of a unary expression.

Something like this:

# lox/ast.py
from dataclasses import dataclass
from typing import Any
from lox.tokens import Token

class Expr:
    """Abstract Base Class for expressions"""

@dataclass
class Binary(Expr):
    left: Expr
    operator: Token
    right: Expr

@dataclass
class Grouping(Expr):
    expression: Expr

@dataclass
class Literal(Expr):
    value: Any

@dataclass
class Unary(Expr):
    operator: Token
    right: Expr

Expr is the base class that all expression classes inherit from.

5 . 2 . 1Disoriented objects

You’ll note that, much like the Token class, there aren’t any methods here. It’s a dumb structure. Nicely typed, but merely a bag of data. This feels strange in an object-oriented architecture. Shouldn’t the class do stuff?

The problem is that these tree classes aren’t owned by any single domain. Should they have methods for parsing since that’s where the trees are created? Or interpreting since that’s where they are consumed? Trees span the border between those territories, which means they are really owned by neither.

In fact, these types exist to enable the parser and interpreter to communicate. That lends itself to types that are simply data with no associated behavior. This style is very natural in functional languages like Lisp and ML where all data is separate from behavior, but it feels odd in Python.

Functional programming aficionados right now are jumping up to exclaim “See! Object-oriented languages are a bad fit for an interpreter!” I won’t go that far. You’ll recall that the scanner itself was admirably suited to object-orientation. It had all of the mutable state to keep track of where it was in the source code, a well-defined set of public methods, and a of private helpers.

My feeling is that each phase or part of the interpreter works fine in an object-oriented style. It is the data structures that flow between them that are stripped of behavior.

5 . 3Working with Trees

Put on your imagination hat for a moment. Even though we aren’t there yet, consider what the interpreter will do with the syntax trees. Each kind of expression in Lox behaves differently at runtime. That means the interpreter needs to select a different chunk of code to handle each expression type. With tokens, we simply matched on the TokenType.

Similarly, we can use the match statement to match and deconstruct each node of the tree:

match expr:
    case Binary(left, operator, right):
        ...
    case Grouping(expr):
        ...
    # ...

Unfortunally, Python treats each cases sequentially, as if it was a chain of if/else statements. But all of those sequential tests are slow. Expression types whose names are alphabetically later would take longer to execute because they’d fall through more case tests before finding the right type. That’s not my idea of an elegant solution.

We have a family of classes and we need to associate a chunk of behavior with each one. The natural solution in an object-oriented language would be to put those behaviors into methods on the classes themselves. We could add an abstract interpret() method on Expr which each subclass would then implement to interpret itself.

This works alright for tiny projects, but it scales poorly. Like I noted before, these tree classes span a few domains. At the very least, both the parser and interpreter will mess with them. As you’ll see later, we need to do name resolution on them. If our language was statically typed, we’d have a type checking pass.

If we added instance methods to the expression classes for every one of those operations, that would smush a bunch of different domains together. That violates separation of concerns and leads to hard-to-maintain code.

5 . 3 . 1The expression problem

This problem is more fundamental than it may seem at first. We have a handful of types, and a handful of high-level operations like “interpret”. For each pair of type and operation, we need a specific implementation. Picture a table:

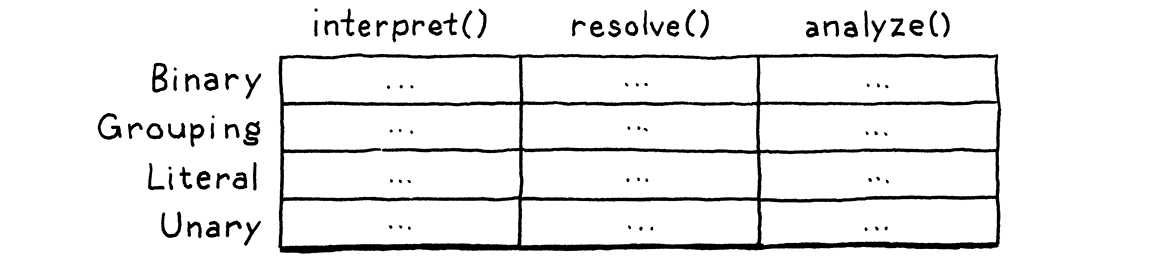

Rows are types, and columns are operations. Each cell represents the unique piece of code to implement that operation on that type.

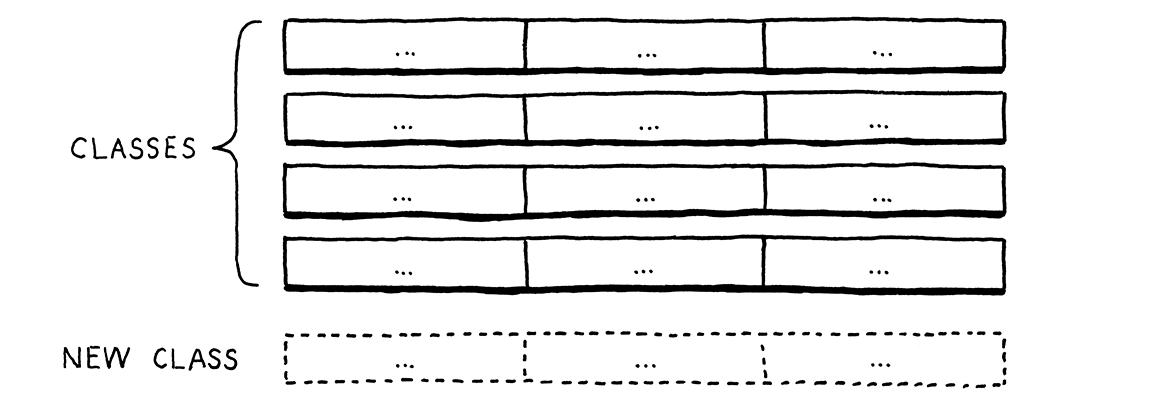

An object-oriented approach assumes that all of the code in one row naturally hangs together. It figures all the things you do with a type are likely related to each other, and the language makes it easy to define them together as methods inside the same class.

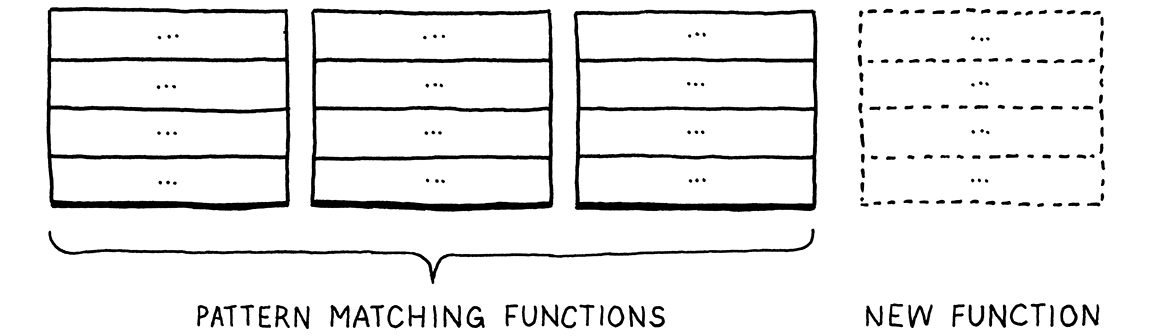

This makes it easy to extend the table by adding new rows. Simply define a new class. No existing code has to be touched. But imagine if you want to add a new operation—a new column. In pure object oriented designs, that means cracking open each of those existing classes and adding a method to it.

Functional paradigm languages in the ML family flip that around. There, you don’t have classes with methods. Types and functions are totally distinct. To implement an operation for a number of different types, you define a single function. In the body of that function, you use pattern matching—sort of a type-based switch on steroids—to implement the operation for each type all in one place.

This makes it trivial to add new operations—simply define another function that pattern matches on all of the types.

But, conversely, adding a new type is hard. You have to go back and add a new case to all of the pattern matches in all of the existing functions.

Each style has a certain “grain” to it. That’s what the paradigm name literally says—an object-oriented language wants you to orient your code along the rows of types. A functional language instead encourages you to lump each column’s worth of code together into a function.

A bunch of smart language nerds noticed that neither style made it easy to add both rows and columns to the table. They called this difficulty the “expression problem” because—like we are now—they first ran into it when they were trying to figure out the best way to model expression syntax tree nodes in a compiler.

People have thrown all sorts of language features, design patterns, and programming tricks to try to knock that problem down but no perfect language has finished it off yet. In the meantime, the best we can do is try to pick a language whose orientation matches the natural architectural seams in the program we’re writing.

Object-orientation works fine for many parts of our interpreter, but these tree classes rub against the grain of object-orientation. Fortunately, Python also supports functional programming and we can choose the paradigm that best fits each sittuation.

5 . 3 . 2Single dispatch

The naive approach to our problem would be to implement an interpret standalone function using a match/case as hinted before:

def interpret(expr: Expr) -> Any:
    match expr:
        case Binary(left, operator, right):
            return ...
        case Grouping(expr):
            return ...
        # ...

As I mentioned before, this approach suffers from a serious performance problem: each case is tested sequentially. This means that as the number of cases grows, the cost of interpretation grows proportionally.

The scanner loop has exactly the same problem, however we generally expect much tighter loops during interpretation than during parsing. A small piece file with only a few lines of code may easily implement a loop that repeat millions of times. On the other hand, it is not so common to bump into Lox files with millions bytes.

The Python standard library has a neat solution to this problem using functools.singledispatch. Single dispatch works similarly to the method dispatch for classes. It associates an implementation function to each class and its descendants and, but each implementation does not have to live in the class body.

Before we apply it to our Expr classes, let’s walk through a simpler example. Say we have two kinds of pastries: beignets and crullers.

class Pastry:
    ...

class Beignet(Pastry):
    ...

class Cruller(Pastry):
    ...

We want to be able to define new pastry operations—cooking them, eating them, decorating them, etc.—without having to add a new method to each class every time. Here’s how we do it. First, we define the fallback for the desired operation. If there is no universal fallback, we simply raise a TypeError.

from functools import singledispatch

@singledispatch
def cook(obj: Pastry):
    msg = f"cannot cook {obj.__class__.__name__} objects"
    raise TypeError(msg)

Then we provide a separate implementatation for each of the supported types:

@cook.register:
def _(obj: Beignet):
    print("Cooking a Beignet")

@cook.register:
def _(obj: Cruller):
    print("Cooking a Cruller")

Each operation that can be performed on pastries is a new single-dispatch function that register an implementation for each Pastry subclass. To perform an operation on a pastry, we simply call the function with the desired pastry object.

5 . 4A (Not Very) Pretty Printer

When we debug our parser and interpreter, it’s often useful to look at a parsed syntax tree and make sure it has the structure we expect. We could inspect it in the debugger, but that can be a chore.

Instead, we’d like some code that, given a syntax tree, produces an unambiguous string representation of it. Converting a tree to a string is sort of the opposite of a parser, and is often called “pretty printing” when the goal is to produce a string of text that is valid syntax in the source language.

That’s not our goal here. We want the string to very explicitly show the nesting structure of the tree. A printer that returned 1 + 2 * 3 isn’t super helpful if what we’re trying to debug is whether operator precedence is handled correctly. We want to know if the + or * is at the top of the tree.

To that end, the string representation we produce isn’t going to be Lox syntax. Instead, it will look a lot like, well, Lisp. Each expression is explicitly parenthesized, and all of its subexpressions and tokens are contained in that.

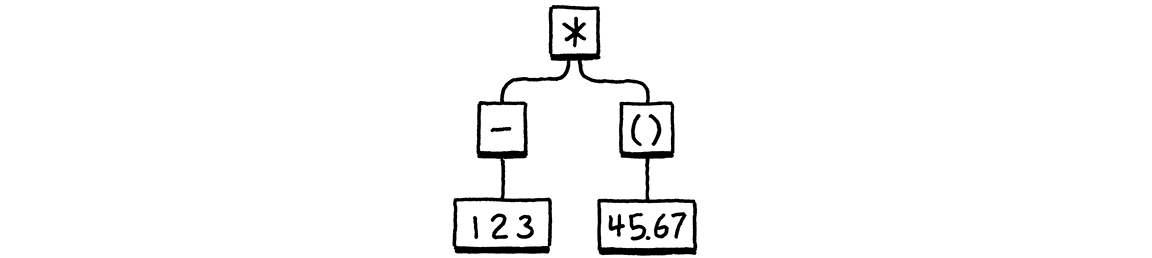

Given a syntax tree like:

It produces:

(* (- 123) (group 45.67))

Not exactly “pretty”, but it does show the nesting and grouping explicitly. To implement this, we define a new single dispatch method.

# lox/printer.py
from functools import singledispatch
from lox.ast import *

@singledispatch
def pretty(expr: Expr) -> str:
    name = expr.__class__.__name__
    raise TypeError(f"cannot display {name} objects")

We now need to provide the implementation for each expression type

# lox/printer.py after the pretty() definition
@pretty.register
def _(expr: Binary):
    symbol = expr.operator.lexeme
    return parenthesize(symbol, expr.left, expr.right)

@pretty.register
def _(expr: Grouping):
  return parenthesize("group", expr.expression)

@pretty.register
def _(expr: Literal):
    if expr.value is None:
        return "nil"
    elif expr.value is True:
        return "true"
    elif expr.value is False:
        return "false"
    return str(expr.value)

@pretty.register
def _(expr: Unary):
    symbol = expr.operator.lexeme
    return parenthesize(symbol, expr.right)

Literal expressions are easy—they convert the value to a string with a little check to handle Python’s None standing in for Lox’s nil. The other expressions have subexpressions, so they use this parenthesize() helper method:

# lox/printer.py
def parenthesize(name: str, *exprs: Expr) -> str:
    parts = [name, *map(pretty, exprs)]
    return "(" + " ".join(parts) + ")"

It takes a name and a list of subexpressions and wraps them all up in parentheses, yielding a string like:

(+ 1 2)

Note that it calls pretty() on each subexpression and passes in itself. This is the recursive step that lets us print an entire tree.

We don’t have a parser yet, so it’s hard to see this in action. For now, we’ll hack together a little main() method that manually instantiates a tree and prints it.

# lox/printer.py at the end of file
from lox.tokens import Token, TokenType as TT

def main():
    minus = Token("MINUS", "-", 1)
    star = Token("STAR", "*", 1)
    expr = Binary(
        Unary(minus, Literal(123)),
        star,
        Grouping(Literal(45.67))
    )
    print(pretty(expr))

if __name__ == "__main__":
    main()

If we did everything right, it prints:

(* (- 123) (group 45.67))

You can go ahead and delete this method. We won’t need it. Also, as we add new syntax tree types, I won’t bother showing the necessary methods for them in pretty method. If you want to, go ahead and add them yourself. It will come in handy in the next chapter when we start parsing Lox code into syntax trees. Or, if you don’t care to maintain pretty(), feel free to delete it. We won’t need it again.
